Storage tanks and containers

Capacity: from 1 м³ up to 100 м³

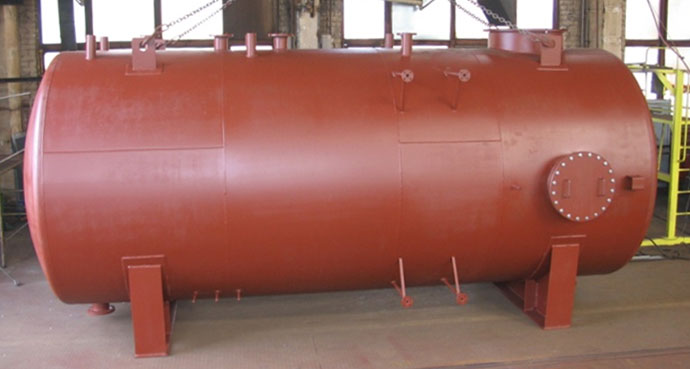

Horizontal one-wall, two-wall, ground-level, underground tanks, with flat, conic or elliptic bottom are designated for acceptance, storage and supply of oil products and water pollutants. Storage tanks are fit for use in the temperature range from +50 °С to -40 °С.

Upon the customer’s will, tanks and cisterns can be completed with support blocks, lodgments, drain and filler pipes, maintenance shafts, servicing platforms, ladders and etc.

Description
The model range

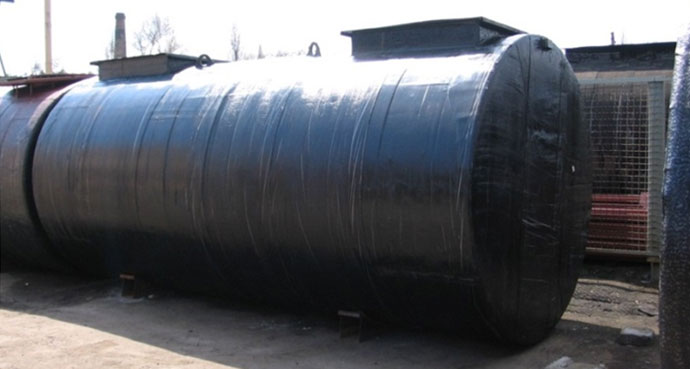

Underground tanks

Single and double-walled underground tanks with waterproofing using bitumen-polymeric roll materials.

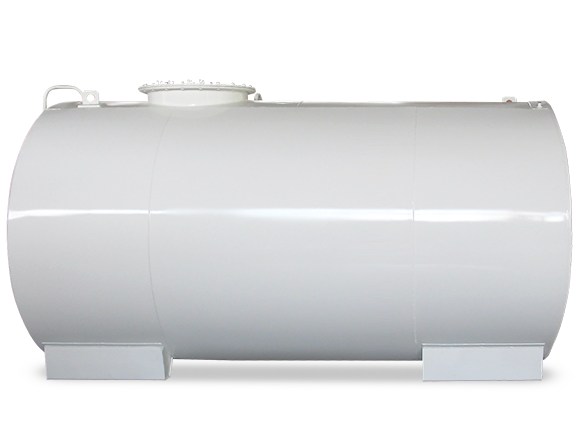

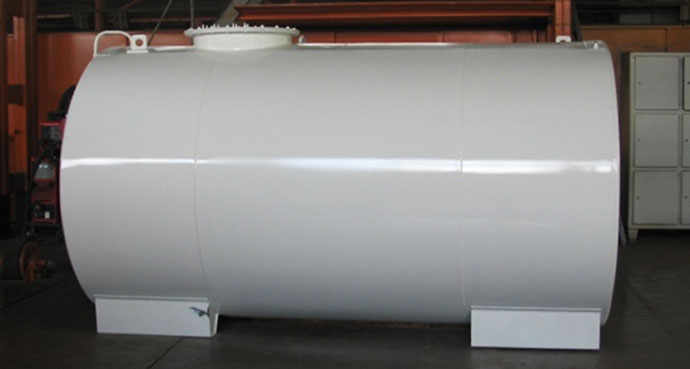

Ground tanks

Single and double-walled ground tanks.

Vessels and tanks for special purposes

Tanks and vessels for special purposes designed for use with excess pressure of 0.6 MPa.

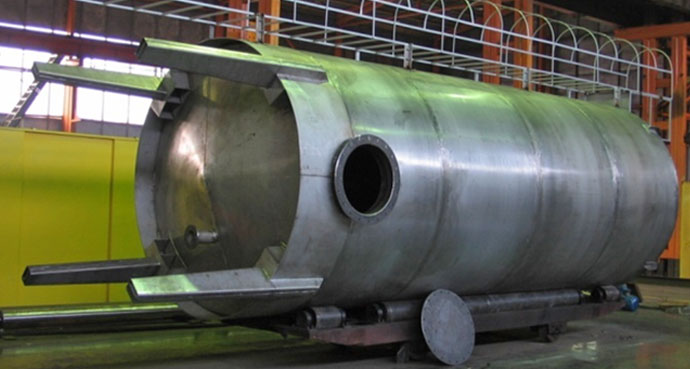

Vessels and tanks for chemical industry

Equipment of stainless steel specially designed for chemical industry.

Equipment for food industry

Stainless steel equipment for food industry.

Services We cared for all the auxiliary services for you

LEGAL SUPPORT

We provide a necessary set of documents for legalization of a gas filling station.

INSTALLATION AND CONNECTION

We perform works for installation, connection and start-up of a gas filling complex.

DESIGN OF GFS

We perform design works for "cold" GFS (modular gas filling stations)

Model	Capacity, m3	Ext. D., mm	Length, mm
РГС 1.1000.3+3.П	1	1000	1500
РГС 1.1000.4+3.П	1	1000	1500
РГС 2.1200.3+3.П	2	1200	2000
РГС 2.1200.4+3.П	2	1200	2000
РГС 3.1200.3+3.П	3	1200	3300
РГС 3.1200.4+3.П	3	1200	3300
РГС 5.1600.4+3.П	5	1600	2750
РГС 5.1900.4+3.П	5	1900	2250
РГС 10.1900.4+4.П	10	1900	4100
РГС 10.2150.4+4.П	10	2150	3300
РГС 15.2150.4+4.П	15	2150	4800
РГС 15.2450.4+4.П	15	2450	3300
РГС 20.2150.4+4.П	20	2150	6300
РГС 20.2450.4+4.П	20	2450	4800
РГС 25.2450.4+4.П	25	2450	5600
РГС 25.2450.5+4.П	25	2450	4100
РГС 25.2450.6+4.П	25	2450	4100
РГС 25.2900.4+4.П	25	2900	4100
РГС 25.2900.5+4.П	25	2900	4100
РГС 32.2450.4+4.П	32	2450	7100
РГС 32.2450.5+4.П	32	2450	7100
РГС 32.2450.6+4.П	32	2450	7100
РГС 32.2900.4+4.П	32	2900	5550
РГС 32.2900.5+4.П	32	2900	5550
РГС 40.2450.4+4.П	40	2450	8650
РГС 40.2450.5+4.П	40	2450	8650
РГС 40.2900.4+4.П	40	2900	6400
РГС 40.2900.5+4.П	40	2450	6400
РГС 50.2450.4+4.П	50	2450	10850
РГС 50.2450.5+4.П	50	2450	10850
РГС 50.2900.4+4.П	50	2900	7800
РГС 50.2900.5+4.П	50	2900	7800
РГС 64.2450.4+4.П	64	2450	13800
РГС 64.2450.5+4.П	64	2450	13800
РГС 64.2900.4+4.П	64	2900	10000
РГС 64.2900.5+4.П	64	2900	10000
РГС 64.2900.6+4.П	64	2900	10000
РГС 70.2900.5+4.П	70	2900	10800
РГС 70.2900.6+4.П	70	2900	10800
РГС 80.2900.5+4.П	80	2900	12300
РГС 80.2900.6+4.П	80	2900	12300
РГС 80.3150.5+4.П	80	3150	10800
РГС 80.3150.6+4.П	80	3150	10800
РГС 100.3150.5+4.П	100	3150	13100
РГС 100.3150.6+4.П	100	3150	13100
РГС 100.3150.8+4.П	100	3150	13100
